AEGIS XNTEL IP-PBX - UCM100

Basic Information
Model Name
UCM100
Call Features
Call park, call forward
QoS
Multiple Layers
Brand
Aegis
Physical Interface
RJ48
Weight
Unit weight 0.83kg
Dimensions
186*108*30mm
Country of Origin
Made in Bharat
Tax
Inclusive GST @18%
Production Capacity
10000PCS / Month

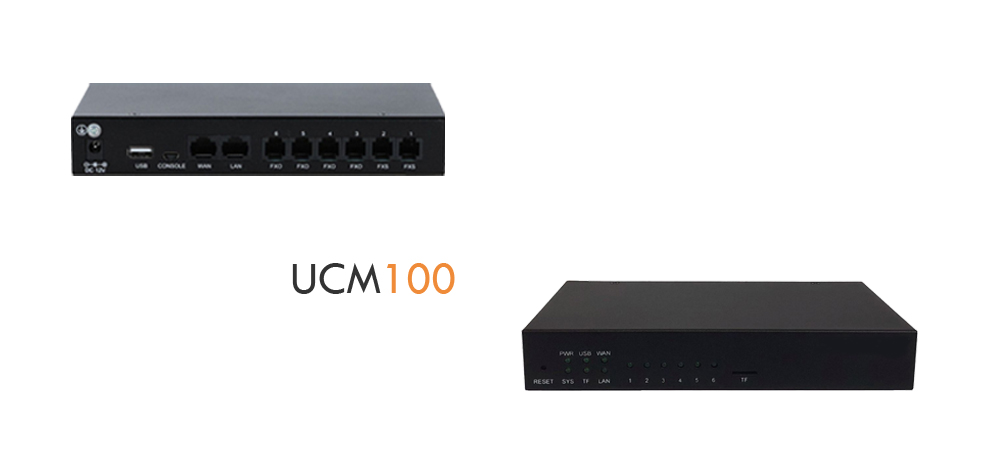

IP-PBX UC100 Series
ucm100 aegis ippbx

  • Up to 60 concurrent calls, 60-attendee conference
  • Integrated 4 PSTN Trunk FXO Ports Plus 2 FXS Ports
  • Comprehensive features for unified communication
  • High level of security protection (SRTP, TLS & HTTPS)

Aegis XNTEL UC100 is a multi-functional gateway with built in IP PBX features which is designed for soho, small and micro enterprises that can increase communication efficiency, reduce telephony costs and provide easy management features. We developed a powerful, reliable, and cost effective VoIP solution for Enterprise Unified Communications, Customer Service Center, Hotel Voice Communications, and other applications. Our Aegis XNTEL UC100 series integrates 4 PSTN Trunk FXO ports and 2 FXS ports for communications without power. The UCM100 enables enterprises to unify multiple communication technologies, such as comprehensive voice, fax, calling, conferencing, video/audio surveillance, data tools, security surveillance, mobility, and facility access management into one commonly managed or accessible network.

The UCM100 series, which is powered by an advanced hardware platform and robust system resources, can accommodate up to 300 registered users and provides easy setup and deployment via the web-browser user interface. In addition to auto-discovery and auto-provisioning, the UCM100 series includes customizable call routing, multi-level IVRs, call queues, auto-attendant, call detail records (CDR), multi-site peering, voicemail/fax forwarding to email, and other capabilities.



ippbxuc100aegis



Key Features :
1. Supports up to 300 users, up to 60 concurrent calls, 60 conference attendees
2. Integrated 4FXO and 2FXS
3. 1.5GHz ARM Quad-core processor, 1GB DDR RAM, 8GB EMMC Flash
4. Supports up to a limitless-level IVR (Interactive Voice Response)
5. Built-in call recording server; recordings accessed via web user interface
6. Supports call queue for efficient call volume management
7. Built-in Call Detail Records (CDR) for tracking phone usage by line, date, etc.
8. Supports voicemail and fax forwarding to email
9. Integrated LDAP and XML phonebooks, flexible dial plan
10. Zero configuration provisioning of Mainstream SIP endpoints
11. Highest level of security protection using SRTP, TLS and HTTPS encryption
12. Hi-speed network ports with Integrated NAT router and built-in firewall
13. Multi-language auto-attendant to efficiently handle incoming calls


Unique Selling Points :
Hi-Interoperability with Network
Hi-Interoperability with Network
The UCM100 offers exceptional NAT network flexibility. There is no need to configure NAT traversal for the remote SIP extension registered to the UCM100 during system deployment.
High User-Friendliness
High User-Friendliness
The UCM100 uses autoclip's sophisticated inbound routing technique. With call records, UCM100 can intelligently match an inbound phone number to a previously called one in autoclip. Moveable extensions, call forwarding, DND, and other features are offered.
Excellent Compatibility
Excellent Compatibility
Without the NAT traversal setting, UCM100 could be compliant with other standard SIP endpoints or components with variable IP addresses, which effectively minimizes configuration complexity.
Multiple High-Security Modes
Multiple High-Security Modes
UCM100 includes a variety of security features such as passwords, ACLs, data filtering, and so on. Outbound routing, DISA, conference, voice mail, and other applications also offer PIN code customization for dynamic firewalls.
Flexible Resource Allocation
Flexible Resource Allocation
UCM100 uses a stochastic method to maximize system resource consumption and efficiency, successfully avoiding processor resource overuse and improving dependability in all conditions.
flexible surveillance
Flexible Surveillance
UCM100 uses flexible multiple-layer monitoring modes to maximize privacy while also ensuring high levels of security and dependability in most situations.


Technical Specification :
Interfaces :
FXS Ports
2 ports
FXO Ports
4 ports
Network Interfaces
Dual 10/100 RJ45 ports
NAT Router
Yes
Peripheral Ports
USB, TF
LED Indicators
Power/Ready, Network, PSTN Line, USB, TF
Reset Switch
Yes
Voice/Video Capabilities :
Voice-over-Packet Capabilities
LEC with NLP Packetized Voice Protocol Unit, 32~128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer
Voice and Fax Codecs
G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, GSM, AAL2-G.726-32; T.38
Video Codecs
H.264, H.263, H263+
QoS
Multiple Layers
Signaling & Control :
DTMF Methods
In Audio, RFC2833, and SIP INFO
Provisioning Protocol & Plug-and-Play
TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of various IP endpoints with no Configuration
Network Protocols
TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LADP
Disconnect Methods
Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone
Security :
Media Encryption
SRTP, TLS, HTTPS, TELNET with Fail2ban, Whitelist, Blacklist, alerts and more to protect against attacks
Physical :
Universal Power Supply
Input: 12VDC,>3A;
Dimensions
186*108*30mm;
Weight
Unit weight 0.83kg
Environmental :
Operating
0 ~ 45°C, 8 ~ 90% (non-condensing); Storage: -20 ~ 85°C
Mounting
Mounting Desktop
Additional Features :
Multi-Language Support
English/Chinese for Web UI; Customizable IVR/voice prompts for English, Chinese; Customizable language pack to support any other languages
Caller ID
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF
Polarity Reversal/Wink
Yes, with enable/disable option upon call establishment and termination
Call Center
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ busy level, in-queue announcement
Customizable Auto Attendant
Unlimited layers of IVR (Interactive Voice Response)
Maximum Call Capacity
Up to 60 even in SRTP encrypted
Conference Bridges
Up to 30 simultaneous PSTN or IP participants
Call Features
Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom etc.
